THI^®F-611 heat conduction oil

Brand: Thinking Finechem
Model number：THI^®F-611

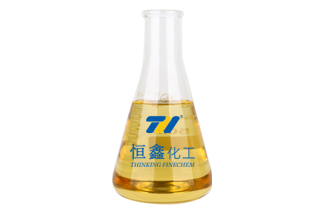

Appearance: light yellowish oily liquid
Operating temperature: > 280 ℃
package size: 170 KG / bucket
For sample and more info, please contact us (Email: info@thinkingchem.com)

This product has good thermal conductivity, good thermal stability, and is less likely to be carbonized. There are many models in this series of product, which meets the requirements of different operating temperatures.

①It is odorless, non-corrosive, and does not cause environmental pollution.
②High flash point, less likely to cause flame, safe to use.
③Heat stable, high resistant and oxidation resistant, less likely to coke, and has long service life.
④excellent thermal conductivity and heat transfer ability.
⑤ moderate viscosity, which helps conduction in pumps.
⑥Good performance under low temperature, low freezing point, suitable for using in cold regions or in winter.

Model No.		611-300	611-320	611-330	611-340	611-350	611-350 (synthetic)
Appearance		Light yellowish	Light yellowish	Light yellowish	Light yellowish	Light yellowish	Light yellowish
Density 20g℃/cm2		0.84-0.86	0.85-0.87	0.85-0.88	0.86-0.89	0.86-0.9	1.100-1.010
Kinematic viscosity 50℃ mm2/s		17-24	19-25	19-25	20-26	20-26	16-20
Acid value mgkH/g≤		0.05	0.05	0.05	0	0.05	0.05
Carbon residue %≤		0.01	0.01	0.01	0.01	0.01	0.01
Flash point (open) ℃≥		180	180	180	180	180	180
Boiling point at 5% distilled		310	330	340	350	360	335
Moisture %		Trace	Trace	Trace	Trace	Trace	Trace
Freezing point℃≤		-10	-15	-15	-15	-15	-25
Corrosion test, T3 copper sheet, 100℃ 3h		Qualified	Qualified	Qualified	Qualified	Qualified	Qualified
Coefficient of expansion 1/℃×10-4		8.0-8.2	7.8-8.0	7.7-7.9	7.6-7.8	7.5-7.7	7.8-8.0
Thermal conductivity Kcal/mh·℃	100℃	0.125	0.115	0.11	0.105	0.1	0.099
Thermal conductivity Kcal/mh·℃	200℃	0.115		0.1	0.095	0.09	0.091
Specific heat Kcal/mh℃	100℃	0.576	0.565	0.56	0.555	0.55	0.445
Specific heat Kcal/mh℃	200℃	0.67	0.66	0.655	0.655	0.645	0.532
Maximum operating temperature ℃		300	320	330	340	350	350
Thermal stability test		Passed	Passed	Passed	Passed	Passed	Passed

It can be used as heat transfer media in petroleum, chemical fiber, chemical, food, medicine, building materials, road asphalt, energy, papermaking, leather production, new materials, carbon, wood, textile, grease, fiber, air conditioning, metalworking industries.

①The expansion tank and oil storage tank must be installed in the heating circulation system and have a certain volume to ensure safe operation.
②It is better to add a filter in the pipeline of the circulation system, and clean and replace the filter regularly.
③Keep the entire heating and circulation system away from water and debris.
④ Oil-resistant, pressure-resistant and heat-resistant graphite gaskets should be used at the valve and flange joints to prevent hot oil leakage.
⑤ The equipment should be cleaned when changing the conduction oil to achieve the best performance. (Our company can provide heat conduction oil replacement cleaning agent to quickly clean heavy grease, oil coke, and sludge in the heat-conducting oil system.) Mixing different heat conduction oils need to be approved by our company before they can be mixed and used.
⑥ Over-temperature operation is strictly prohibited.
⑦The operating temperature of heat conduction oil is above 280℃, and the technical index should be tested every six months.
